All-In-One and standard interface to simplify 20% of vehicles components and costs.
CONNECT
IDENTIFY

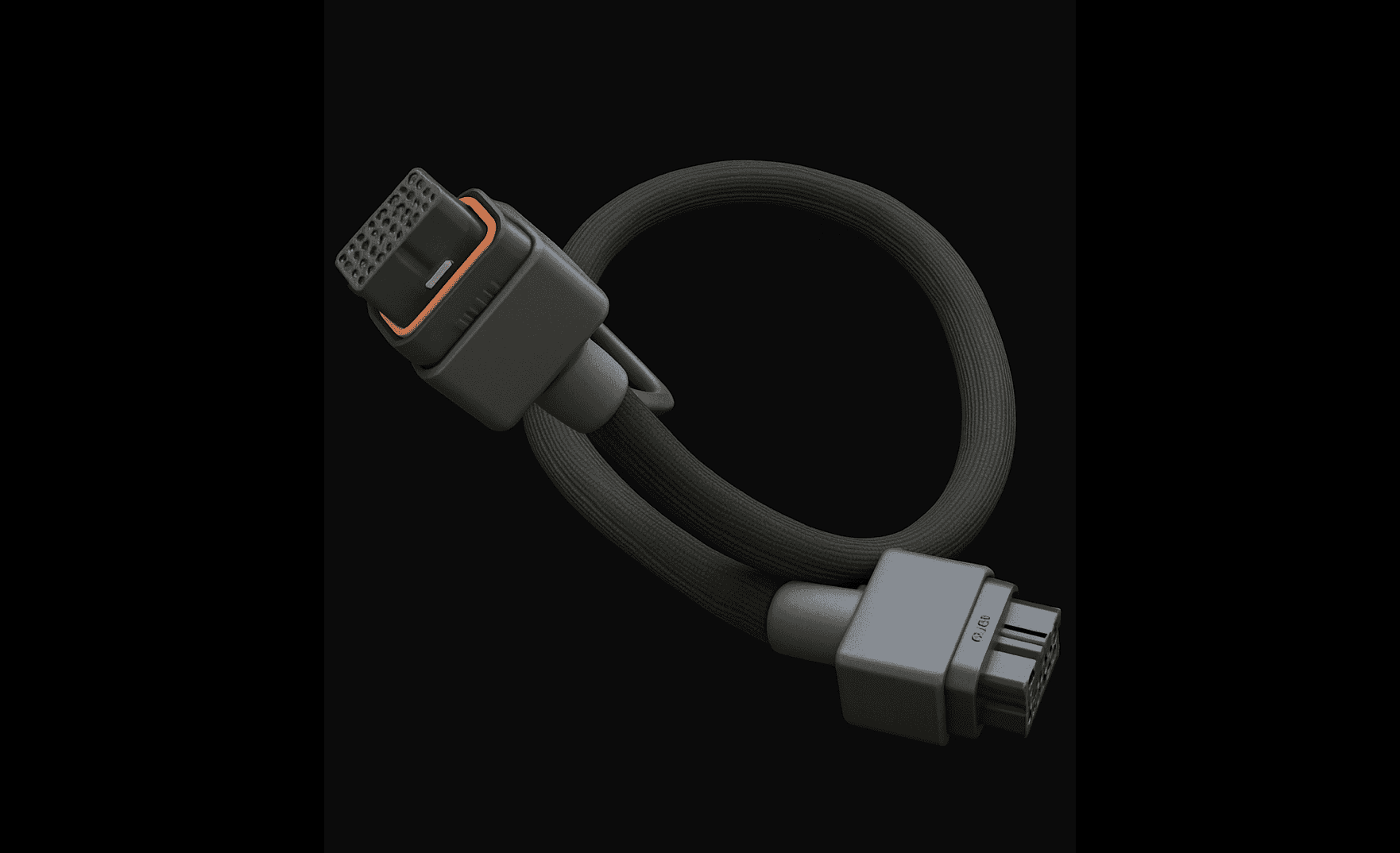

A unique cable provide power and data to the device.
TUC.plug™ instantly recognizes the device.
Each module has an ID.
The brain configures data routing, power limits, and software link — automatically.
No pairing, no setup, no drivers
ORCHESTRATE
The system is now software-defined and fully reconfigurable.
The TUC.brain™ recognize the new device and powers the module, makes it available to the vehicle network, and manages diagnostics in real time.
If removed, the system updates the configuration instantly.
The building blocks of TUC.system™
CORE-TECHNOLOGY
TUC.brain® - TUC.os®
The zonal controller that makes it all work.
TUC Brain handles:
multi-protocol communication (CAN, Ethernet, LIN)
real-time coordination of modules
plug ID recognition
predictive diagnostics
AI-based anomaly detection
It acts as a switch, a controller and a platform for developers.
Modular | Multi-zonal | OTA-ready | Edge computing

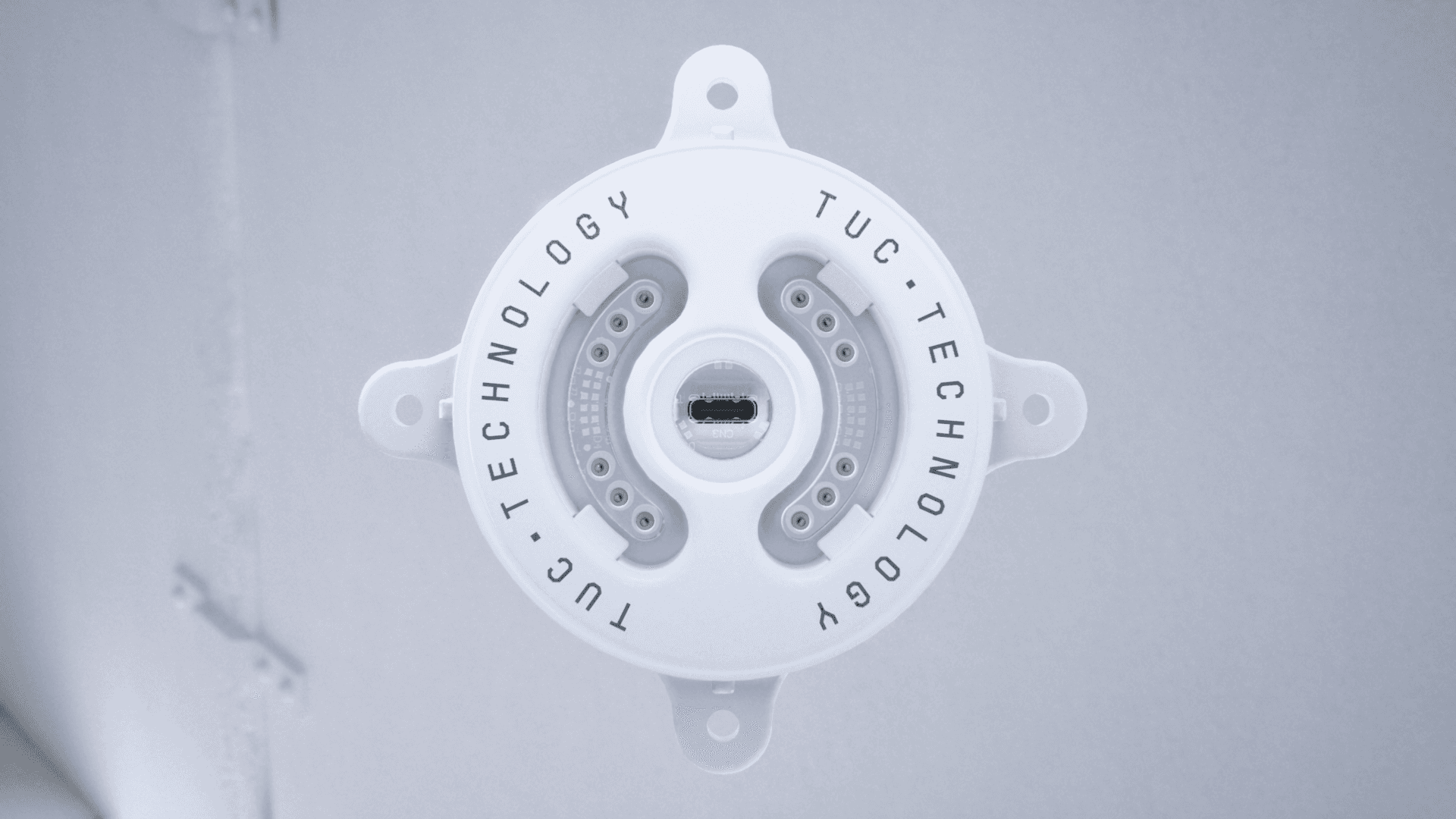

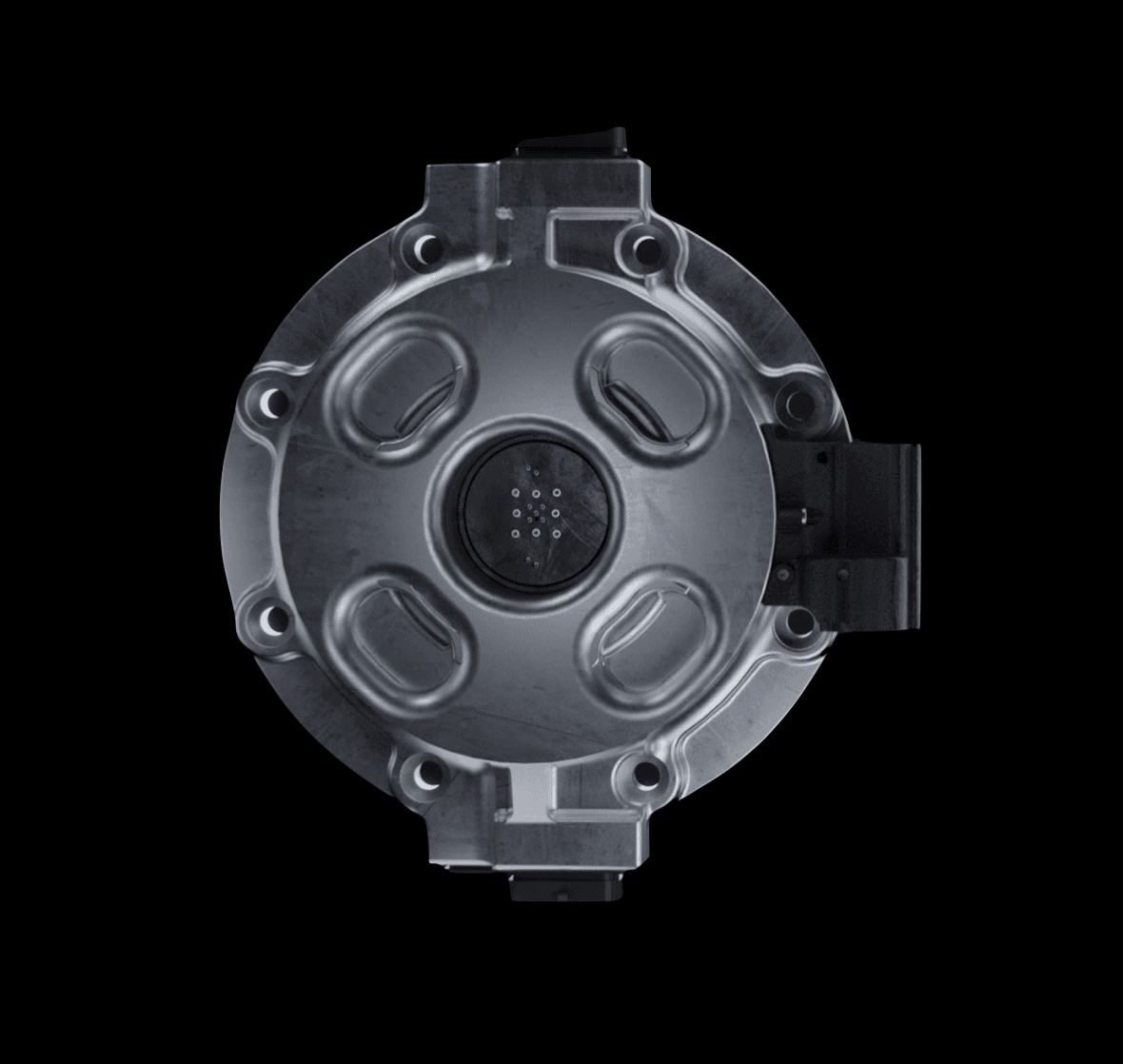

TUC.plugs®

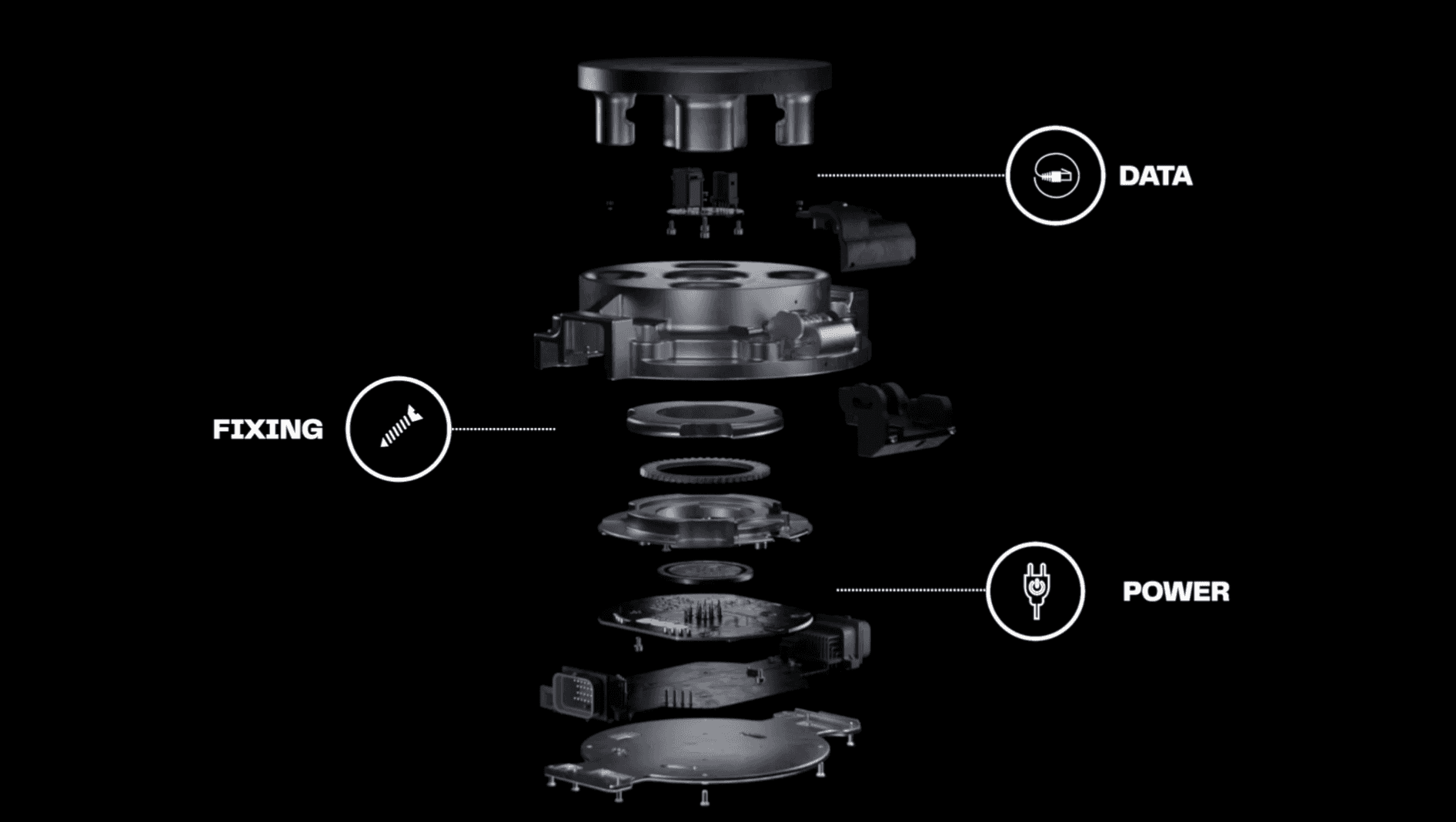

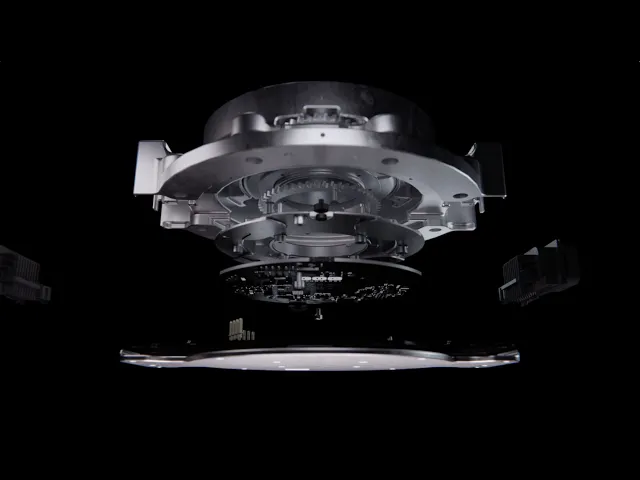

The patented plug&play connector that integrates:
Mechanical fastening, power supply, Data communication.

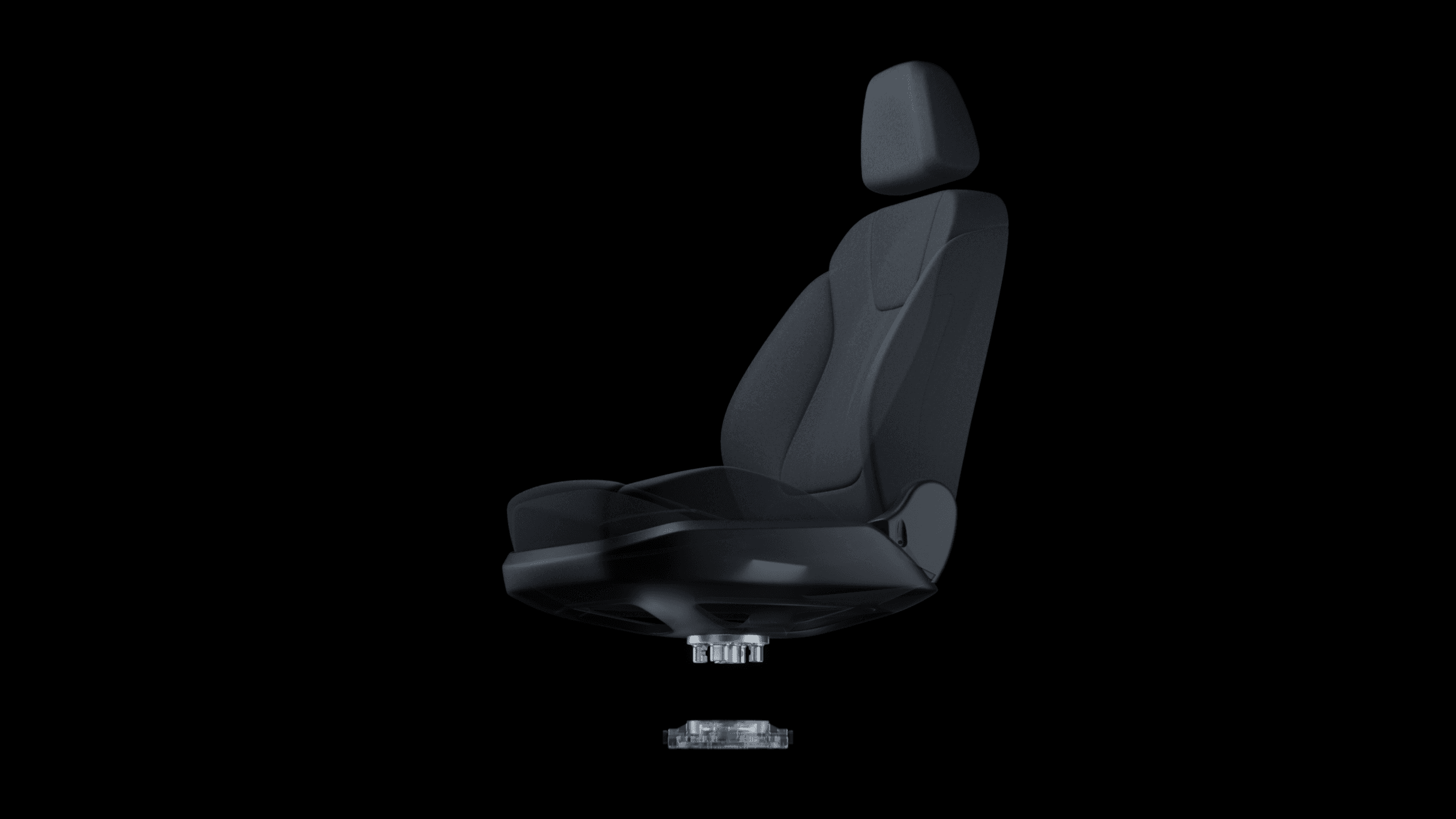

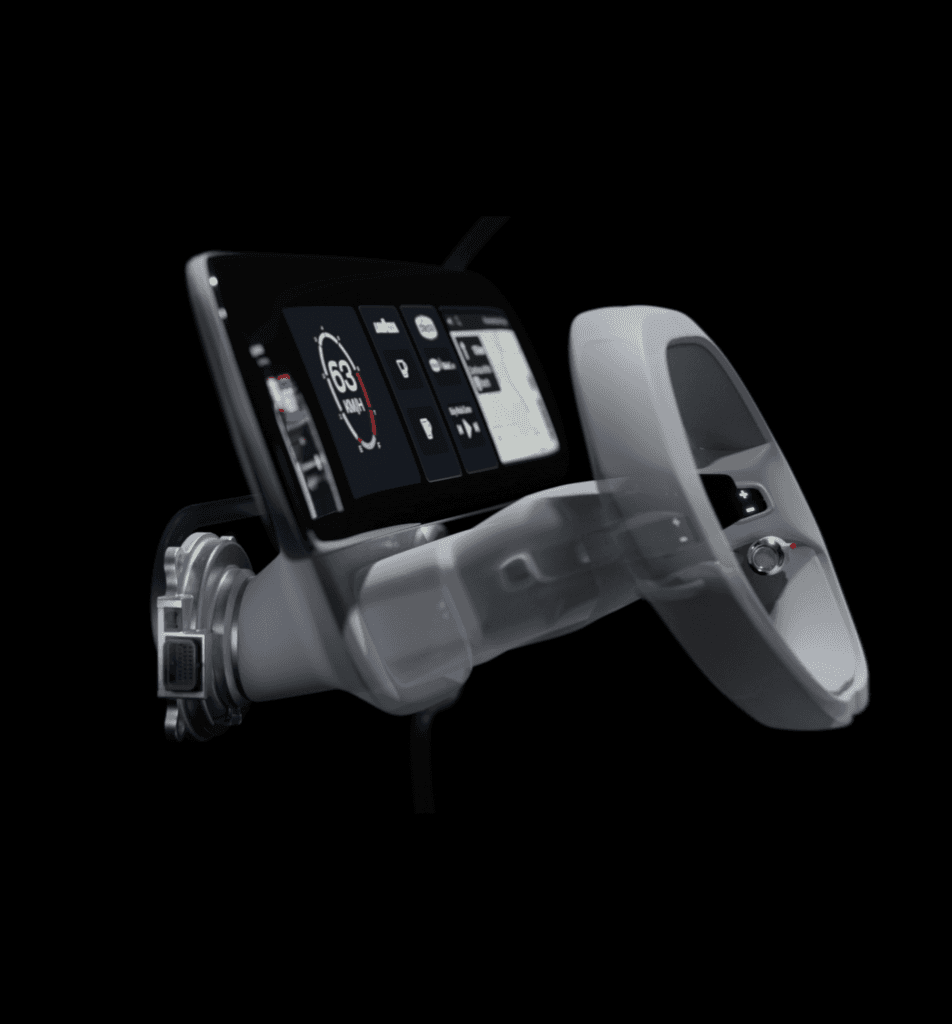

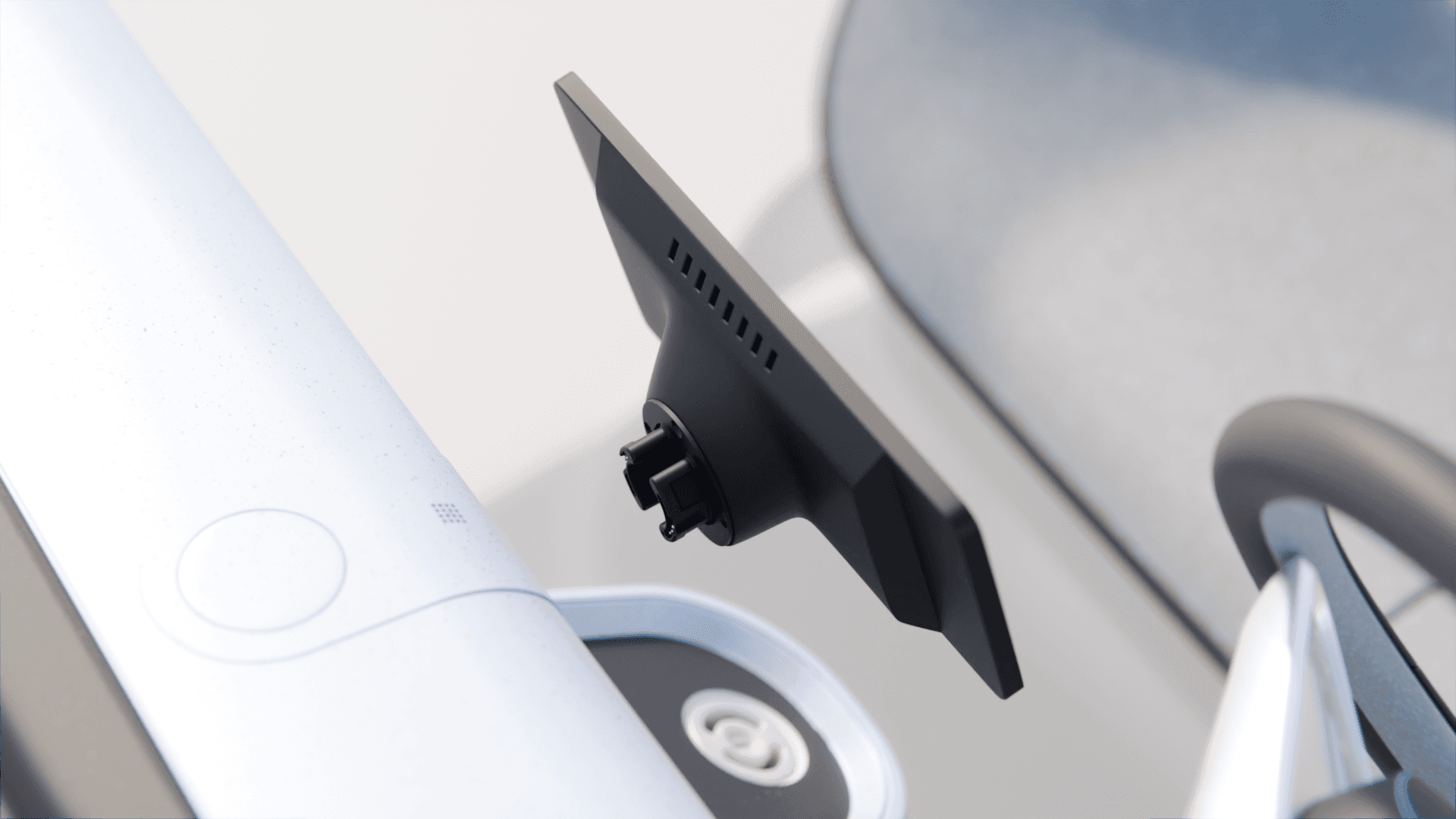

It enables physical and digital mounting of any compatible module: displays, interfaces, controls, devices, seats, smart surfaces.
Discover the Line-up
TUC.network®
A unique daisy-chain physical backbone that distributes power and data across the vehicle.
The interface standardizes connections and enables simplified manufacturing, modular layout and future upgrades.
12V / 24V / 48V | CAN & Ethernet | Automotive-grade

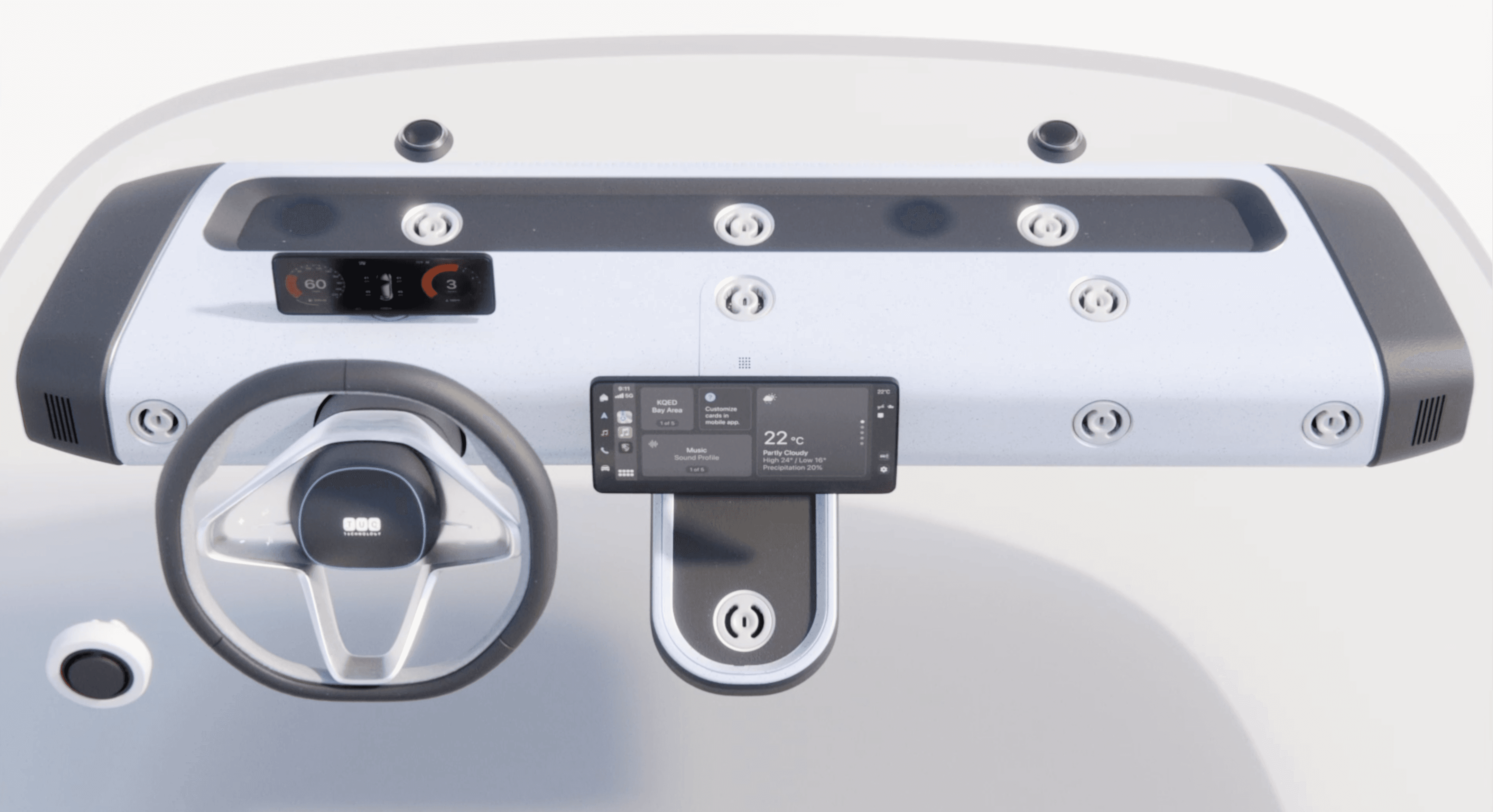

What can you connect with TUC?
Discover our 52 modular & PlugPlay Devices ready to be plugged in TUC.plugs.
Designed by TUC.design Team
Use your own module shape, Define your own data logic, Plug in multiple devices per zone.

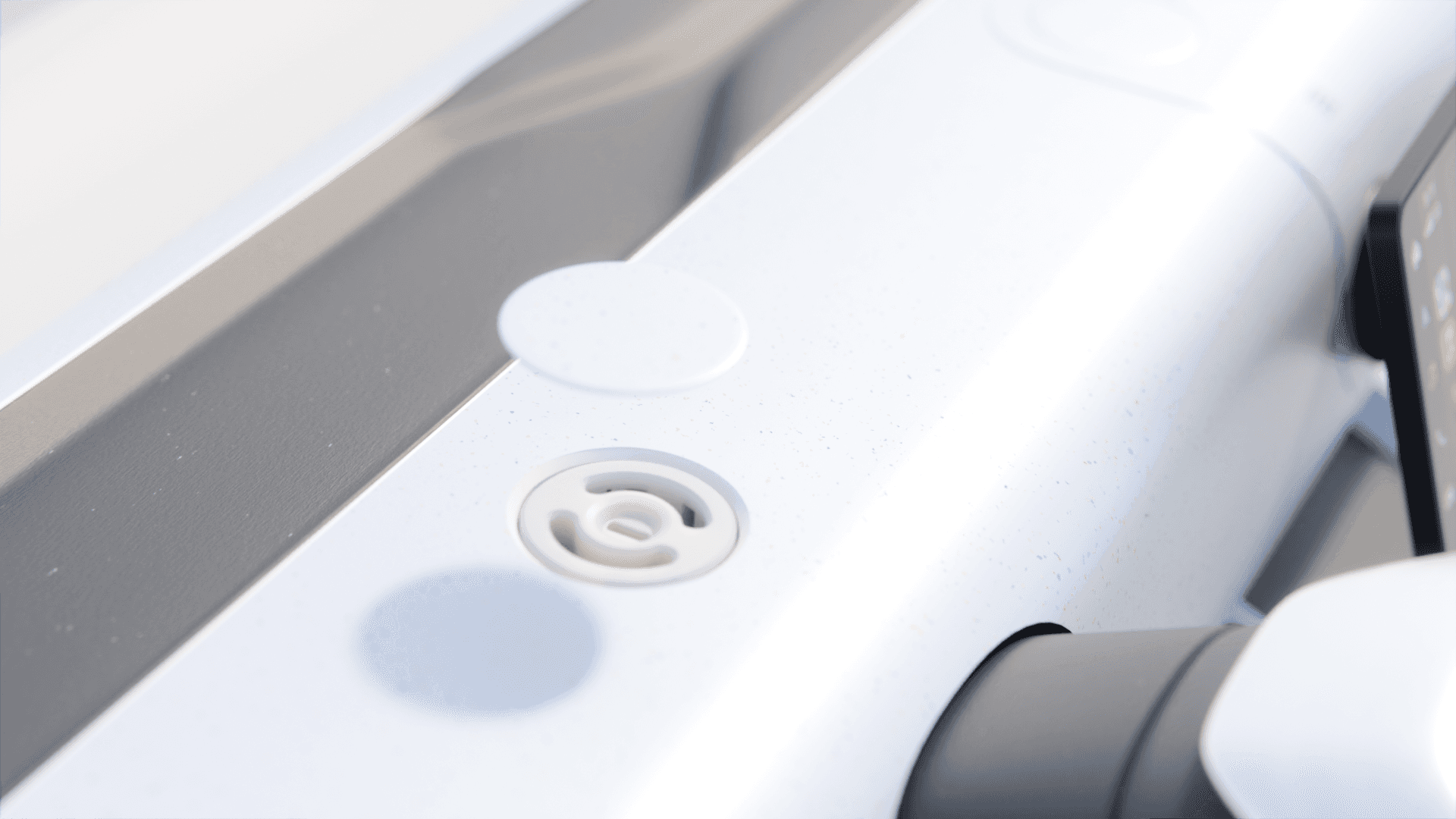

Reveal additional plugs only when needed (smart covers or manual lids)

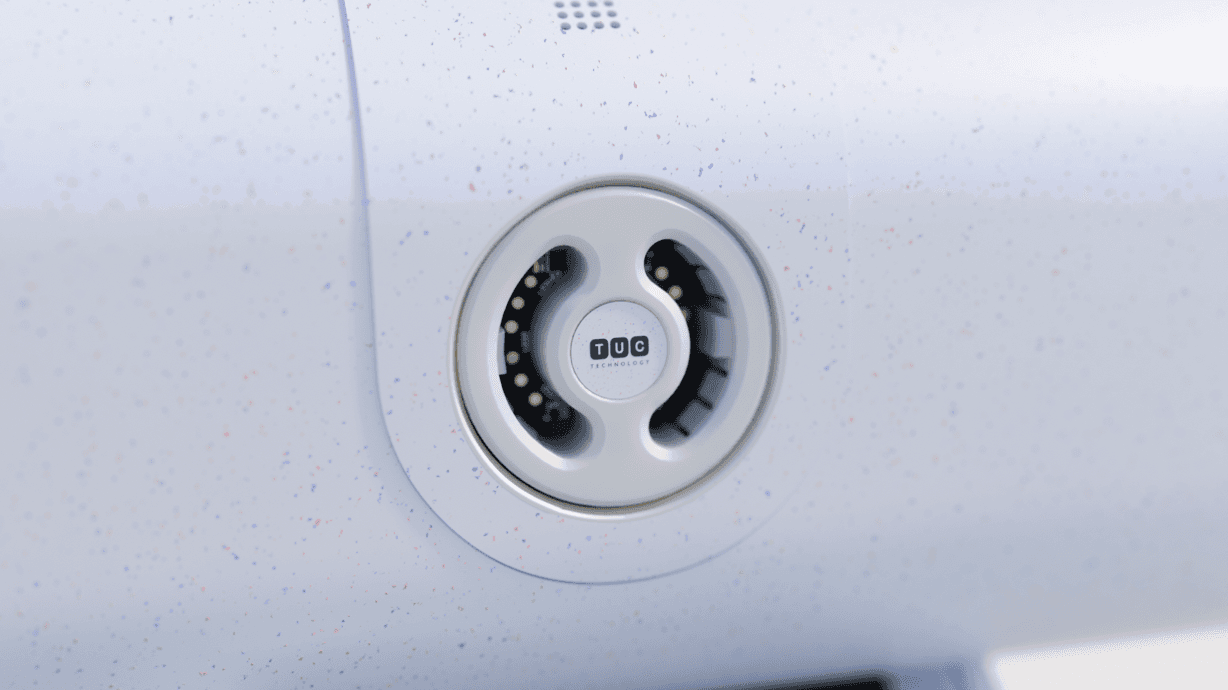

Smart cover
The TUC.plug gently reveal only when needed automatically when the component approaches.
Manual Cover - Full
The TUC.plug can be revealed with a quiet manual touch.
Manual Cover with closed USB
Cover to close the USB features but to continue using the TUC modularity.
Manual Cover with open USB
Cover to close the TUC.plug features but to continue using the USB socket.
TUC.system at maximum power.
Watch the video to discover more

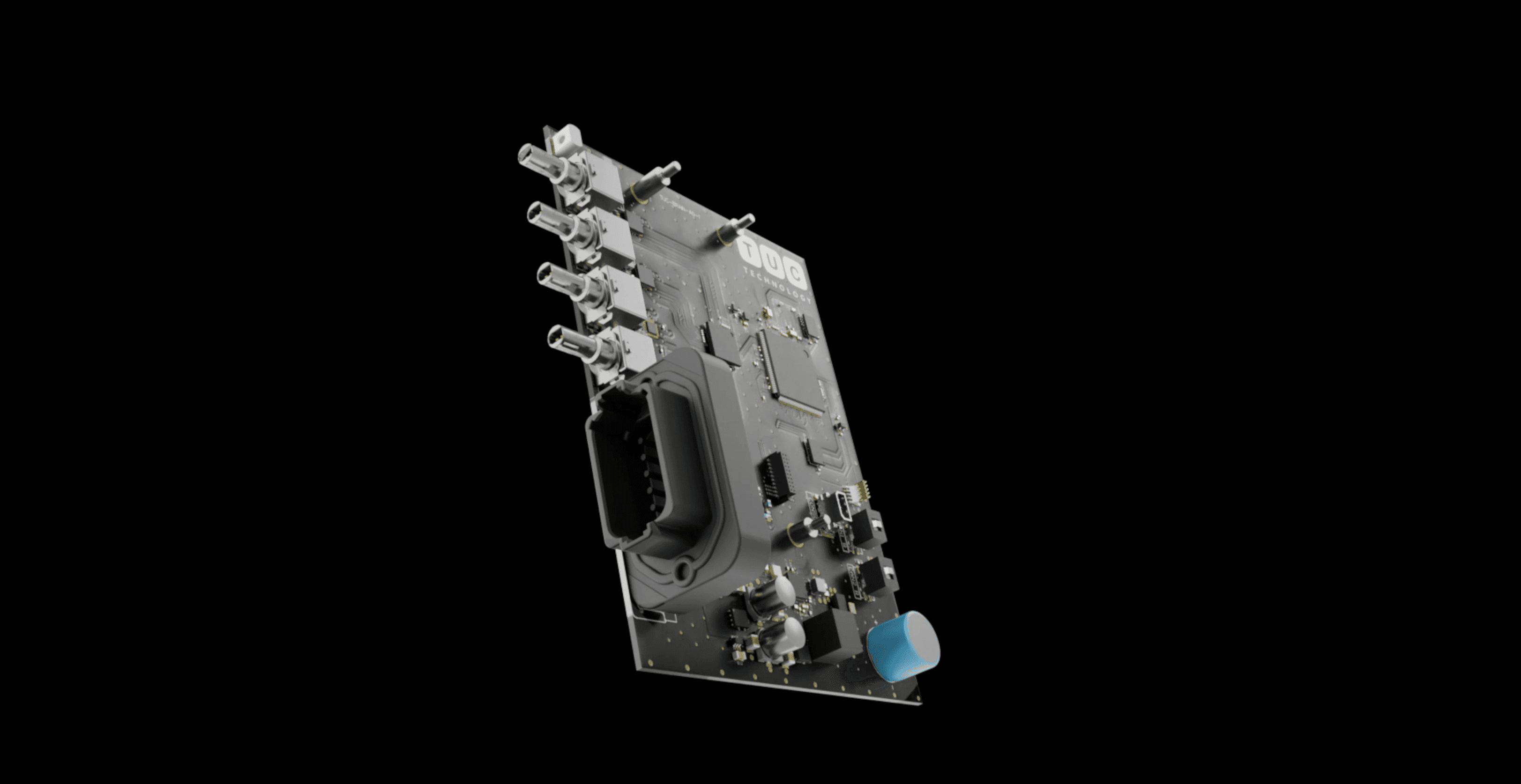

TUC.brain
the mastermind behind.
Dynamic zonal control, more than just a switch.
It is the central intelligence that connects and manages every TUC.plug, creating the TUC.system — a native zonal architecture, designed for industrial scale.
It understands, in real time, what is connected, where it’s located, how it’s performing, and what it should be doing next.
An intelligent controller that orchestrates communication across every zone — from front seats to rear cabin to cargo.
It handles: Data flow, Power supply, Redundancy,
Updates, Security.
Everything is coordinated, instantly and intelligently.
Powered by TUC.OS
Full Specs of the TUC.system
The system is fully testable, scalable and compliant with automotive standards.
TUC is already under integration with major OEMs and Tier1s.
TUC.plugs specs
Mechanical fastening
Push-Pull, or Bayonet
Mechanical Performances
Static: to 4000kg
Safety Locking
Manual or Electro-actuated
Signals
CAN, CAN FD, LIN, Ethernet 10 BASE-T1S, GPIO
Daisy Chain Power/Data
Yes, only in smart plugs
Pass Thorough Powe/Data
Yes
Status LED light for visual feedback
Yes, only in smart plugs
Physical Device Authentication
Yes, only in smart plugs
Power/Data Management
Yes, only in smart plugs
On-Board Diagnostic
Yes, only in smart plugs
Certification
IP67 - ECE R14 - ECE R 21 - ECE R 17
Connectivity
Wi-Fi 6E
Power
12V - 24 V - 48V
Weight
from 0,030 kg to 1.2kg
